Agent Mode User Guide

Version: v1.14.2+ Status: Production Ready

This guide explains how to use autonomous agent mode for multi-step task execution. Agent mode works with both ppxai (Rich TUI) and ppxaide (Textual TUI).

---

Table of Contents

1. Overview
2. Getting Started
3. Commands Reference
4. Research Workflows
5. Development Workflows
6. VSCode Extension
7. Best Practices
8. Troubleshooting

---

Overview

Agent mode transforms the TUI from a turn-based chat assistant into an autonomous developer agent. Instead of requiring manual direction for each step, the agent can:

• Plan - Analyze tasks and create execution strategies
• Execute - Use tools to read, edit files, and run commands
• Verify - Check results and iterate until complete
• Report - Summarize what was accomplished

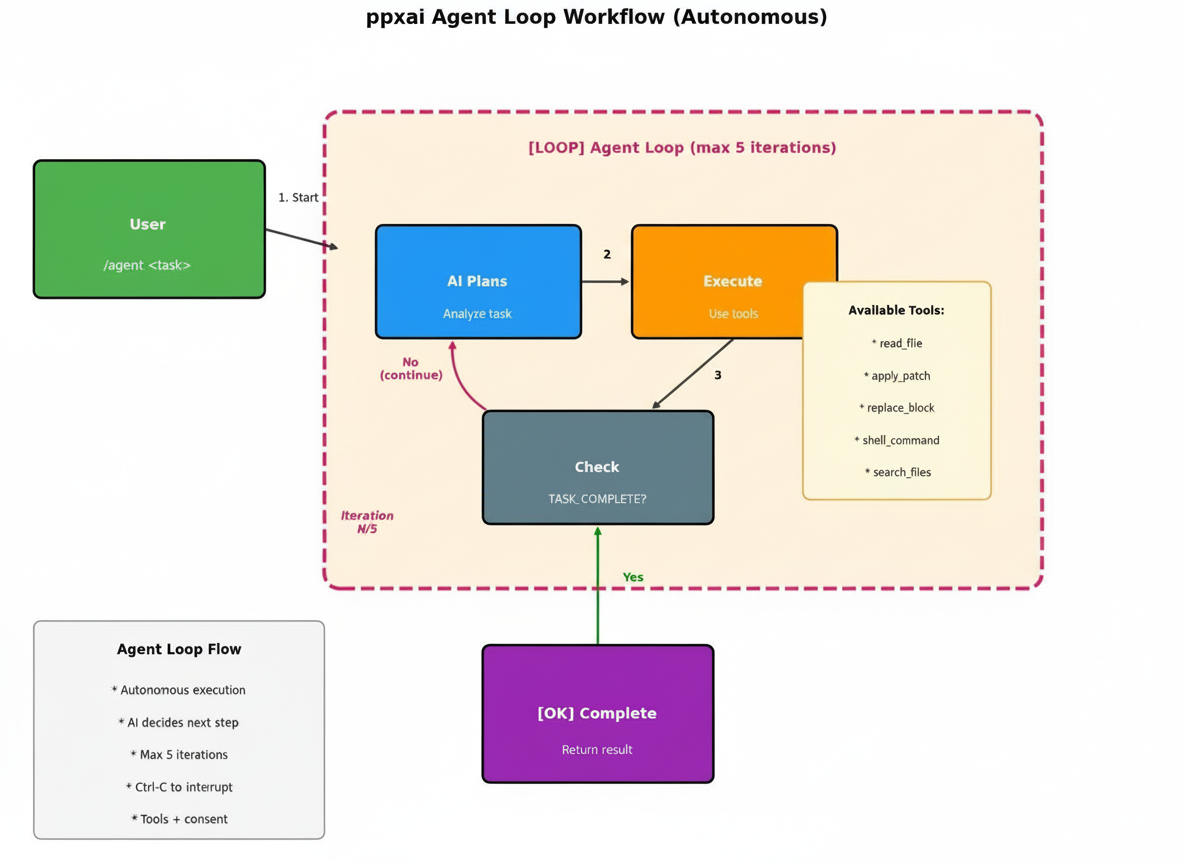

How It Works

1. You issue an /agent <task> command
2. The agent enters an autonomous loop (max 10 iterations by default)
3. Each iteration: Plan → Execute tools → Check completion
4. Loop continues until:
5. AI signals TASK_COMPLETE: (success)
6. Max iterations reached (configurable, default: 10)
7. User interrupts with Ctrl-C

Comparison: Turn-Based vs Agent Mode

Aspect	Turn-Based (Default)	Agent Mode
User involvement	Every step	Initial task only
Tool calls	Single per turn	Multiple per iteration
Iterations	Manual	Automatic (up to 10)
Best for	Simple queries	Multi-step tasks

---

Getting Started

Prerequisites

1. Tools must be available (they are auto-enabled with agent mode)
2. For file editing, you'll need to approve edits (consent system)

Quick Start

# Start ppxai (Rich TUI) or ppxaide (Textual TUI)
ppxai    # or ppxaide

# Enable agent mode (optional - auto-enabled when using /agent)
/tools agent on

# Run an autonomous task
/agent Fix the failing test in test_auth.py

Your First Agent Task

Try this simple task to see agent mode in action:

/agent Create a hello.py file that prints "Hello, Agent Mode!"

The agent will: 1. Analyze the task 2. Use insert_text tool to create the file 3. Signal completion with a summary

---

Commands Reference

/agent <task> - Run Autonomous Task

The main command for agent mode. Runs an autonomous loop until the task is complete.

Syntax:

/agent <task description>

Examples:

# Simple file creation
/agent Create a Python script that calculates fibonacci numbers

# Bug fixing
/agent Fix the TypeError in utils.py line 42

# Code review with context
/agent Review @git changes and fix any issues

# Refactoring with structure awareness
/agent Reorganize the API module based on @tree

Interrupt: Press Ctrl-C at any time to stop the agent loop.

/tools agent - Manage Agent Mode

Enable, disable, or check agent mode status.

Syntax:

/tools agent          # Show current status
/tools agent on       # Enable agent mode
/tools agent off      # Disable agent mode

Notes: - Enabling agent mode automatically enables tools - Agent mode is session-scoped (resets on restart)

Context Providers with Agent Mode

Agent mode works seamlessly with context providers:

Provider	Description	Example
@file	Include file contents	/agent Refactor @auth.py
@git	Include git diff	/agent Review @git and fix issues
@tree	Include project structure	/agent Suggest improvements for @tree
@clipboard	Include clipboard text (v1.14.2+)	/agent Debug this error @clipboard
@url	Fetch web content (v1.14.2+)	/agent Summarize @https://docs.example.com

Combined usage:

/agent Review my changes @git in the context of @tree and fix any bugs

# Debug an error from clipboard
/agent Analyze this stack trace @clipboard and suggest fixes

# Implement based on documentation
/agent Implement the API from @https://api.example.com/spec.json

---

Research Workflows

Agent mode excels at research and analysis tasks that require multiple steps.

Codebase Analysis

# Find and explain a pattern
/agent Find all uses of the Observer pattern in this codebase and explain how they work

# Security audit
/agent Analyze @tree for potential security issues and list them

# Dependency analysis
/agent Review the imports in @main.py and identify any unused or deprecated dependencies

Code Review Workflow

# Review staged changes
/agent Review @git changes for bugs, security issues, and style problems

# Compare with design doc
/agent Compare my implementation @git against the spec in DESIGN.md

Documentation Research

# Generate documentation
/agent Read @utils.py and generate comprehensive docstrings for all functions

# Update outdated docs
/agent Compare @README.md with the current @tree structure and update outdated sections

---

Development Workflows

Agent mode is powerful for development tasks that span multiple files.

Bug Fixing

# Single file fix
/agent Fix the failing test in test_auth.py

# Multi-file fix
/agent The login fails with 401 - find the cause in auth.py and fix it

# With test verification
/agent Fix the bug in parser.py and verify the tests pass

Feature Implementation

# Simple feature
/agent Add a --verbose flag to the CLI

# Multi-step feature
/agent Implement user session management with tests

# With context
/agent Based on @tree, add a caching layer in the appropriate location

Refactoring

# Rename across files
/agent Rename the class 'OldName' to 'NewName' in all files

# Extract function
/agent Extract the validation logic from auth.py into a separate validator.py

# Restructure
/agent Based on @tree, move utility functions from main.py to utils.py

Test Development

# Generate tests
/agent Generate unit tests for @calculator.py

# Fix failing tests
/agent Fix all failing tests in tests/test_api.py

# Add test coverage
/agent Add edge case tests for the parse_date function in utils.py

---

VSCode Extension

The VSCode extension provides a graphical interface for agent mode.

Agent Toggle Button

In the ppxai chat panel, you'll see an Agent button next to the Tools button:

• Gray (OFF): Agent mode disabled
• Purple (ON): Agent mode enabled

Click to toggle. When enabled, tools are automatically enabled.

Using Agent Mode in VSCode

1. Click the Agent button to enable agent mode
2. Type your task in the chat input
3. The agent will execute autonomously
4. Watch the streaming output for progress
5. Use Esc or the stop button to interrupt

HTTP API Endpoints

If using the HTTP server directly:

# Check status
curl http://127.0.0.1:54320/agent/status

# Enable
curl -X POST http://127.0.0.1:54320/agent/enable

# Disable
curl -X POST http://127.0.0.1:54320/agent/disable

---

Best Practices

Writing Effective Tasks

Be specific:

# Good - specific target and action
/agent Fix the TypeError on line 42 of utils.py

# Less effective - vague
/agent Fix bugs

Include context:

# Good - context provided
/agent Review @git changes for security issues in the auth module

# Less effective - missing context
/agent Check for security issues

Define success criteria:

# Good - clear completion criteria
/agent Implement user validation and ensure all tests pass

# Less effective - unclear when done
/agent Add validation

Managing Consent

The agent requires consent for file edits:

Response	Effect
y (yes)	Allow this specific file edit
n (no)	Deny this edit
always	Allow all edits this session (autonomous mode)
never	Block all edits this session

Tip: For fully autonomous execution, respond always to the first consent prompt.

Handling Interrupts

• Ctrl-C (once): Gracefully stops the current iteration
• Ctrl-C (twice within 2s): Force stops immediately

After interrupting, the agent will summarize progress made.

Iteration Limits

The default max is 10 iterations (configurable via tools.agent.max_iterations). If your task needs more:

1. Let the agent complete its iterations
2. Review the output
3. Run /agent continue or issue a follow-up task

---

Configuration

Agent mode behavior can be customized in ppxai-config.json:

{
  "tools": {
    "agent": {
      "max_iterations": 10,
      "context_char_limit": 2000,
      "min_task_words": 3
    }
  }
}

Bootstrap Context for Agents (v1.14.0)

You can provide agent-specific guidance via AGENTS.md bootstrap files. This is especially useful for: - Guiding agent behavior based on provider/model capabilities - Setting project-specific coding standards - Improving small model performance with targeted hints

Example AGENTS.md for agent workflows:

---
provider_hints:
  local:
    - "Complete tasks fully without stopping on empty responses."
    - "Use tools proactively - don't ask for permission."
    - "When editing files, make all changes in a single edit_file call."
  ollama:
    - "Keep responses concise - limited context window."
    - "Prefer smaller, focused tool calls over complex multi-step operations."
model_hints:
  "qwen2.5-coder:3b":
    - "Focus on code quality and correctness."
    - "Use edit_file for surgical changes, write_file only for new files."
  "deepseek-r1*":
    - "Show your reasoning process before taking actions."
    - "Think step-by-step for complex problems."
---

# Project: My App

## Agent Guidelines
- Run tests after making changes: `pytest tests/ -v`
- Follow PEP 8 style guidelines
- Add docstrings to new functions

## Code Standards
- Python 3.11+, type hints required
- Use dataclasses for data structures

Use /context hints to see which hints are active for your current provider/model.

See Bootstrap Context Guide for full documentation.

Configuration Options

Setting	Default	Description
max_iterations	10	Maximum autonomous loop iterations before stopping
context_char_limit	2000	Character limit for context display in tool results
min_task_words	3	Minimum word count required for agent tasks

Why These Settings Exist

max_iterations: Prevents runaway agent loops that could consume excessive API tokens or run indefinitely. The default of 10 balances giving the agent enough room to complete complex tasks while preventing infinite loops.

• Lower values (3-5): Safer for simple tasks, uses fewer tokens, faster completion
• Higher values (15-20): Allows complex multi-step tasks, but risks more API usage
• Warning: Values above 20 may lead to excessive token consumption

context_char_limit: Controls how much context from tool results is shown in the UI and passed back to the AI. Higher limits provide more context for accurate decisions but increase token usage.

• Lower values (500-1000): Faster, cheaper, but may miss important details
• Higher values (3000-5000): Better context retention, but more expensive
• Warning: Very high limits (>5000) may cause context overflow in some models

min_task_words: Safety feature that rejects vague single-word tasks. This prevents accidental dangerous actions from ambiguous commands like /agent on or /agent delete.

• Default (3): Requires descriptive tasks like "Fix the bug in auth.py"
• Lower values (1-2): Less safe, allows vague tasks
• Warning: Setting to 1 removes this safety check entirely

Shell Command Safety

Agent mode includes built-in shell command safety patterns. These patterns are always active even without a config file:

Dangerous patterns (require consent): - rm, mv, dd, chmod, chown, sudo - kill, pkill, killall - curl | bash, wget | bash

Never-allow patterns (always blocked): - rm -rf /, dd of=/dev/ - Fork bombs and system-level destructive commands

You can customize these in ppxai-config.json:

{
  "tools": {
    "shell": {
      "safe_patterns": ["^ls\\s*", "^cat\\s+"],
      "dangerous_patterns": ["^rm\\s+", "^kill\\s+"],
      "never_allow_patterns": ["^rm\\s+-rf\\s+/"]
    }
  }
}

See Shell Consent Guide for complete documentation.

---

Troubleshooting

Agent Not Starting

Problem: /agent command shows error

Solutions: 1. Ensure engine client is available: Check if ppxai started correctly 2. Try enabling tools manually: /tools enable 3. Check provider supports tools: Not all providers have tool support

Agent Gets Stuck

Problem: Agent loops without making progress

Solutions: 1. Interrupt with Ctrl-C 2. Provide more specific instructions 3. Break the task into smaller sub-tasks

Consent Prompts Interrupting Flow

Problem: Too many consent prompts

Solutions: 1. Respond always to enable autonomous file editing 2. Pre-approve directories in config (future feature)

Max Iterations Reached

Problem: Task incomplete after max iterations

Solutions: 1. Review the agent's progress 2. Run a follow-up /agent command with updated context 3. Consider if the task should be split into smaller parts

Tool Errors

Problem: Agent reports tool execution failed

Solutions: 1. Check file permissions 2. Verify the target file exists 3. Enable verbose mode: /tools set verbose on

---

Examples: Complete Workflows

Example 1: Debug and Fix

# Start agent mode
/tools agent on

# Run autonomous debugging
/agent The tests in test_parser.py are failing. Find the bug and fix it.

# Agent output:
# ━━━ Iteration 1/5 ━━━
# Analyzing test failures...
# [Uses read_file to check test_parser.py]
# Found assertion error on line 45...
#
# ━━━ Iteration 2/5 ━━━
# Reading parser.py to find the bug...
# [Uses read_file to check parser.py]
# Found issue: off-by-one error on line 78...
#
# ━━━ Iteration 3/5 ━━━
# Applying fix...
# [Uses replace_block to fix parser.py]
# [Uses execute_shell_command to run tests]
# Tests pass!
#
# ✅ Task completed!
# Summary: Fixed off-by-one error in parser.py line 78. All tests now pass.

Example 2: Code Review

# Review git changes
/agent Review @git changes for bugs and security issues

# Agent output:
# ━━━ Iteration 1/5 ━━━
# Analyzing git diff...
# Found changes in: auth.py, api.py, utils.py
#
# Issues found:
# 1. SQL injection risk in api.py line 42
# 2. Hardcoded secret in auth.py line 15
# 3. Missing input validation in utils.py
#
# ━━━ Iteration 2/5 ━━━
# Fixing SQL injection...
# [Uses replace_block to parameterize query]
#
# ━━━ Iteration 3/5 ━━━
# Moving secret to environment variable...
# [Uses replace_block in auth.py]
#
# ✅ Task completed!
# Summary: Fixed 2 security issues. auth.py now uses env var, api.py uses parameterized queries.

Example 3: Feature Implementation

# Implement a feature
/agent Add a --dry-run flag to the CLI that shows what would happen without making changes

# Agent iterates through:
# 1. Reading CLI entry point
# 2. Adding argument parser option
# 3. Implementing dry-run logic
# 4. Updating help text
# 5. Testing the feature
#
# ✅ Task completed!

---

Related Documentation

• Checkpoint Guide - Atomic rollback for agent tasks
• Shell Consent Guide - Shell command security
• Custom Tools Guide - Creating custom tools
• Agentic Workflow Plan - Technical implementation details

---

Last Updated: 2026-01-03 Version: v1.13.0
